NEW! CALMINI SOLID AXLE SWAP SYSTEM

In Production - Reserve a Kit Today!

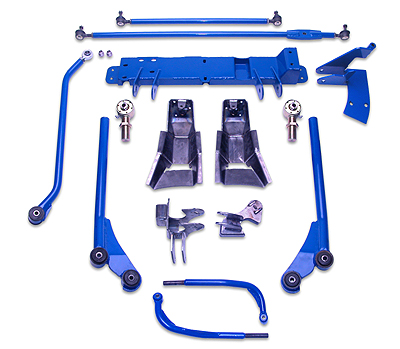

Gaining in popularity, the Suzuki Sidekick/Geo Tracker is an undeniably stout 4x4 platform.  However the stock IFS (control arms, CV drive axles, and cast aluminum 3^rd member) leave much to be desired. Using a 1986-1995 Suzuki Samurai front housing (taking into account: width, lug pattern, passenger-side drop, driveshaft flange, and gearing options) stuffed with 4130 26-spline inner shafts and Birfields, a Solid Axle Tracker was born.  The new solid axle swap is designed to run a 2.0” - 8” stroke coil-over and features reinforced upper shock mounts, 1.5“ x .188” DOM radius arms with a beefy 1/2“ plate gusset with vulcanized rubber bushings for a silent on-road ride.  Using a combination track bar bracket and power steering reinforcement plate, the new track bar easily mounts to the frame and the axle mounts.  Complete system ships with: transmission/arm mount, front radius arms with articulating joints, track bar with adjustable Heim joint, track bar/steering box reinforcement mount, adjustable upper strut brace, new heavy duty drag link, tie rod, and brake lines.  Intended as an upgrade to our popular 3” Super Articulation system, this axle swap takes the Sidekick/Tracker to the next level.  Welding is required for installation of the radius arm mounts to the axle and upper coil mount.  All other suspension components are bolt-on. This system will clear a 33” tall tire without any modifications.  It is recommend to install 1" wheel spacers on the front axle with this system installed.

System is available as a stand-alone front end system or can be purchased as part of a complete kit with our Super Articulation Rear Suspension system.  Rear components include: trailing arms, rear upper V-Bar, differential carrier bracket, rear coils, shocks, brake line, and 3/4"-16 heim joint.  Please call the sales office for additional information or email sales@calmini.com

System applicable on all 2/4-Door model Suzuki Sidekick/Vitara & Geo Trackers from 1989-1998

NOT INCLUDED: OEM SAMURAI FRONT HOUSING
